JE-UV1017 transparent singlecomponent acrylic UV-curable electronic adhesive for securing electronic component

Application:  Suitable for This product is specifically designed for securing electronic component harnesses and can be fully cured under UV light. Household control module; Impregnated transformers;Inductive protection; PCB ; LED lights;

*Color:Clear

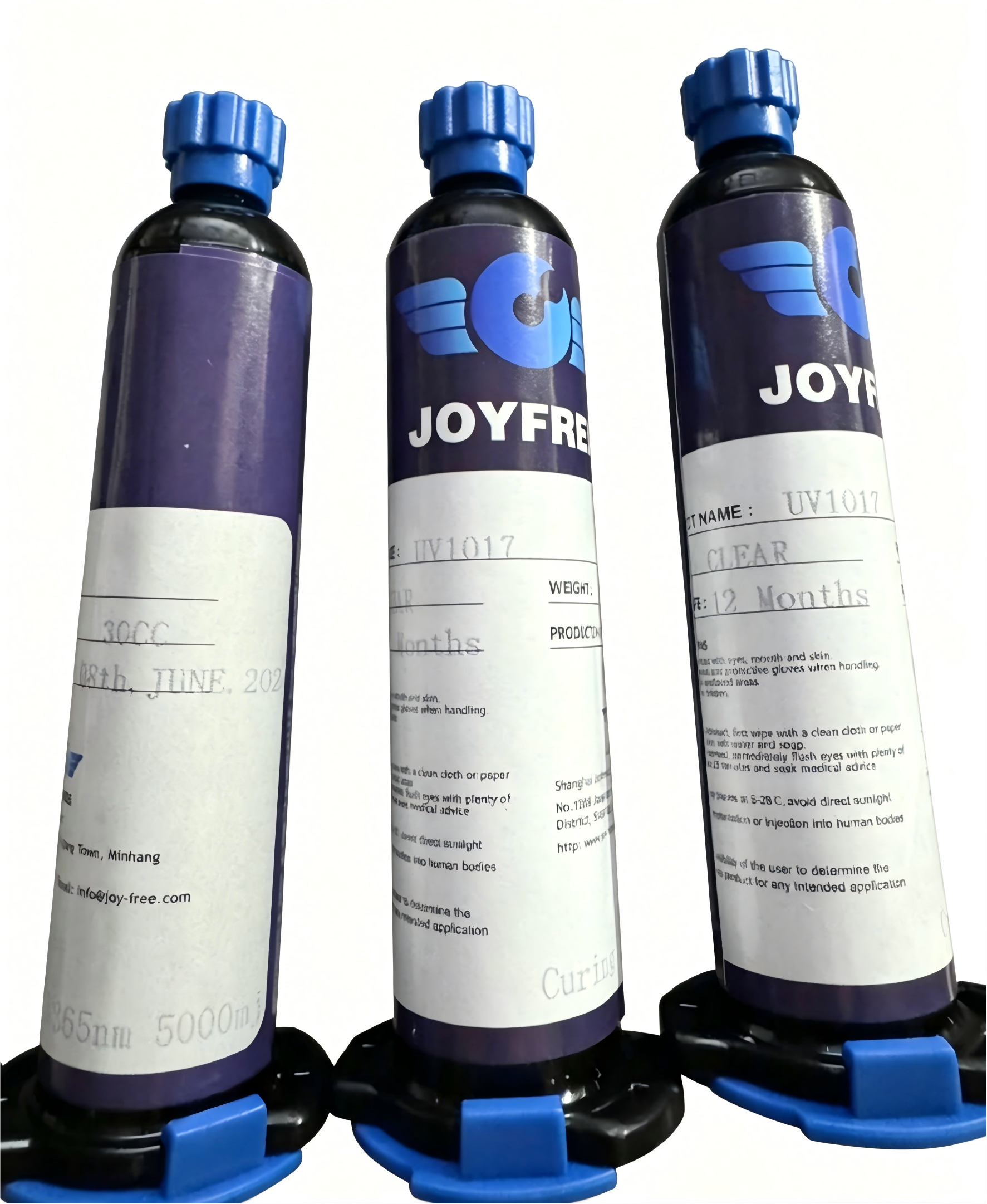

*Package: 10 g/10 cc syringe;30 g/30 cc syringe *Shelf life:   12 months(at room temperature,protected from light)

UV1017 is a colorless, transparent, singlecomponent acrylic UV-curable electronic adhesive. It features rapid curing speed and excellent surface drying performance, with moderate hardness, high elongation, and optimal curing depth. The adhesive exhibits resistance to thermal cycling and yellowing, and demonstrates strong adhesion to various substrates including metals, glass, ceramics, and engineering plastics. Its moderate viscosity ensures superior application processability.

Performance index

Surface ： Colorless, transparent liquid

Type ：acroleic acid

Solvent content: Solvent-free

Density g/ml:1.06

Viscosity (cps): 7400 (Brookfield DVNXHBCBG viscometer, 25°C, CP-51/5 rpm)

Thixotropy Index: 1 (25℃， CP-51，η 0.5rpm / η5rpm)

Curing Conditions

Irradiated with a 365 nm UV light source, with a photodose of 2000 mJ/cm²

Performance after curing

Appearance: Colorless, transparent solid

Hardness(D): 50 ( GB/T 531.1-2008 Hardening Test)

Shear strength (pc/pc, MPa): 10.2 (GB 7124-2008)

Tensile strength (MPa): 10.2 (GB/T 528-1998 Hardening Test)

Elongation at break 180%

Water absorption 0.5%

For TDS, MSDS, ROHS etc. also price,you can add whatsapp / wechat 0086-18721823209 or send us mail info@joy-free.com  Or send inquiry below.
